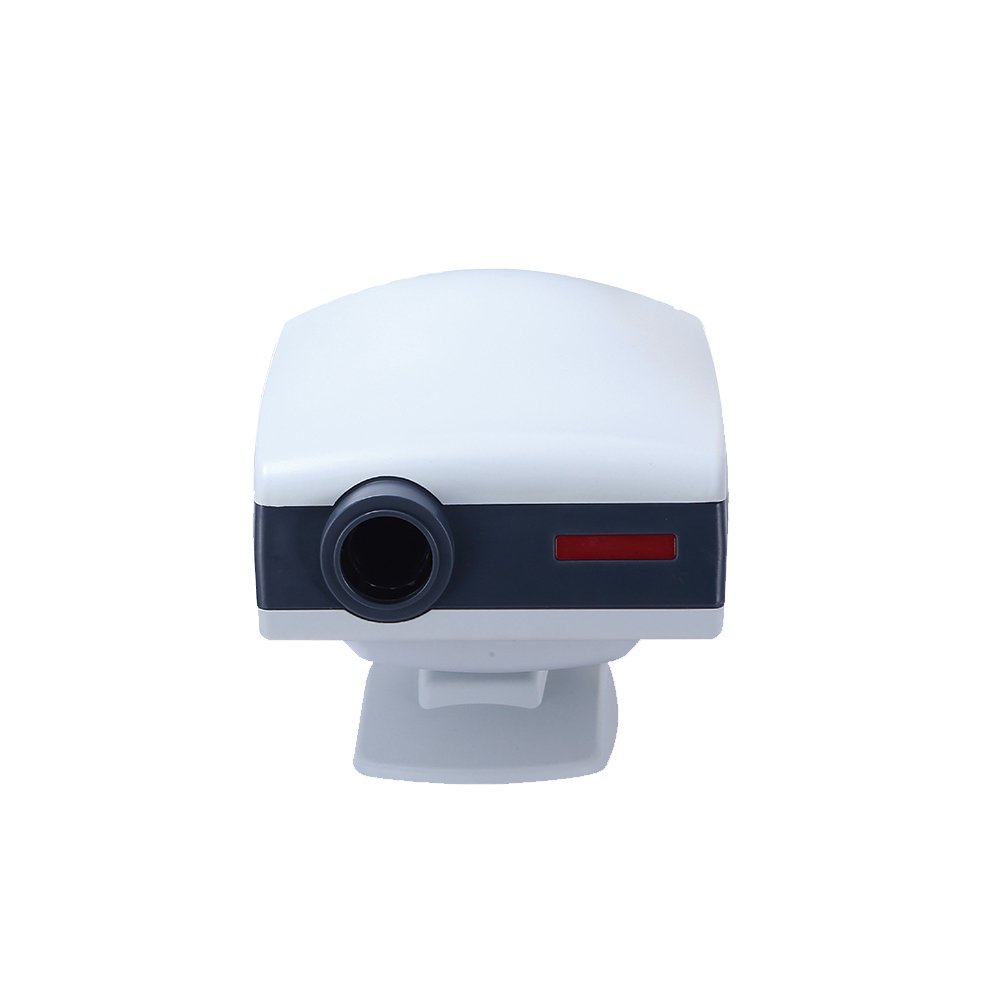

ACP-3 Auto Chart Projector for Vision Acuity Testing — Ophthalmic Office Setup
ACP-3 chart projector with 2-program 30-step automation and polarised metal screen — the program-driven chart projector for clinics standardising test sequences.
- SKU
- OPS-ACP-3
- Brand
- OpticsMED
- Warehouse
- Los Angeles, US · Rotterdam, NL
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
The OpticsMED ACP-3 is the program-driven chart projector — two saved programs of up to 30 steps each let the practice define standard refraction-test sequences and run them with a single button press. The included polarised metal screen and polarised glasses support binocular-balance and stereo testing out of the box.
Key features
- 2 saved programs with up to 30 steps each
- Projection distance 1.5–7 m (5 m standard)
- 30× projection magnification at 5 m
- 0.01–0.02 s chart switching speed
- 5 mask types: open, horizontal line (5), vertical line (8), single letter (21), red/green
- Mask switching 0.01–0.02 s
- 12 V/50 W halogen or 12 V/10 W LED light source
- Polarised metal screen + polarised glasses (standard accessories)
- 10-min auto-standby
- Floor stand / wall stand optional
Specifications
| Projection distance | 1.5–7 m |
|---|---|
| Magnification | 30× at 5 m |
| Projection size | 330 × 270 mm |
| Power | AC 220 V/50 Hz or 110 V/60 Hz, 80 W |
| Dimensions | 320 × 218 × 240 mm |
| Net weight | 7.2 kg |
Built for
Multi-room optometry chains that want every exam room to run the identical test sequence, training-classroom installs where instructors program teaching sequences in advance, and clinics doing routine binocular-balance testing where the polarised screen bundle saves a separate procurement.
