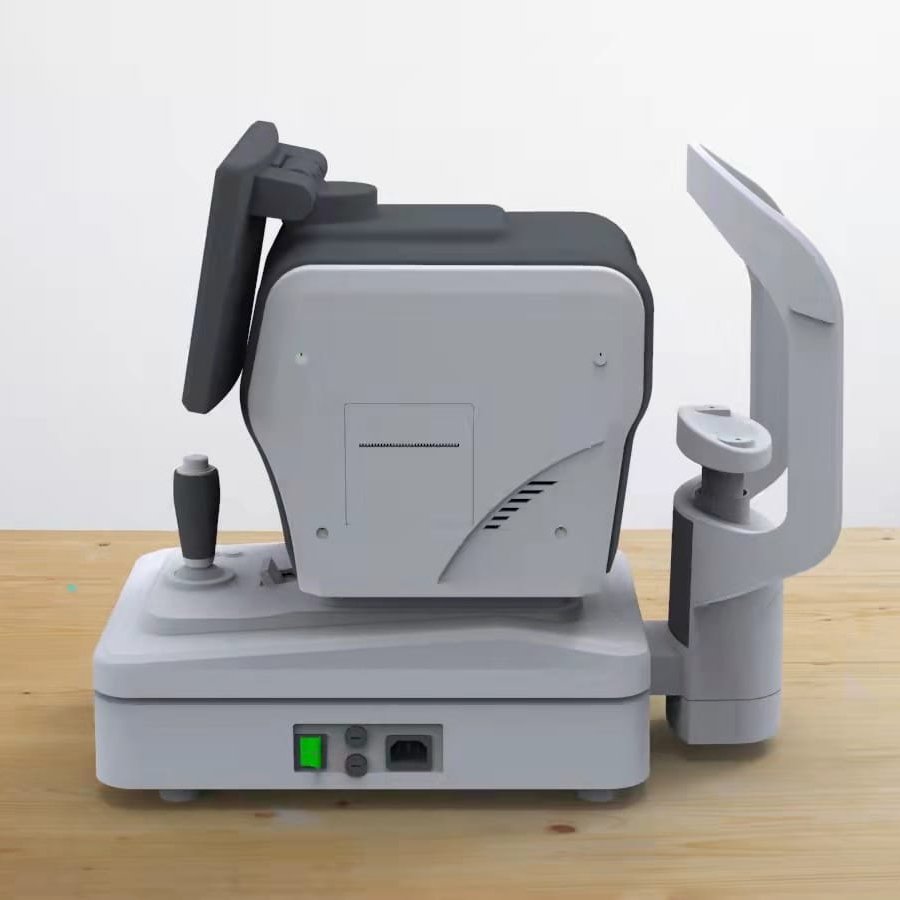

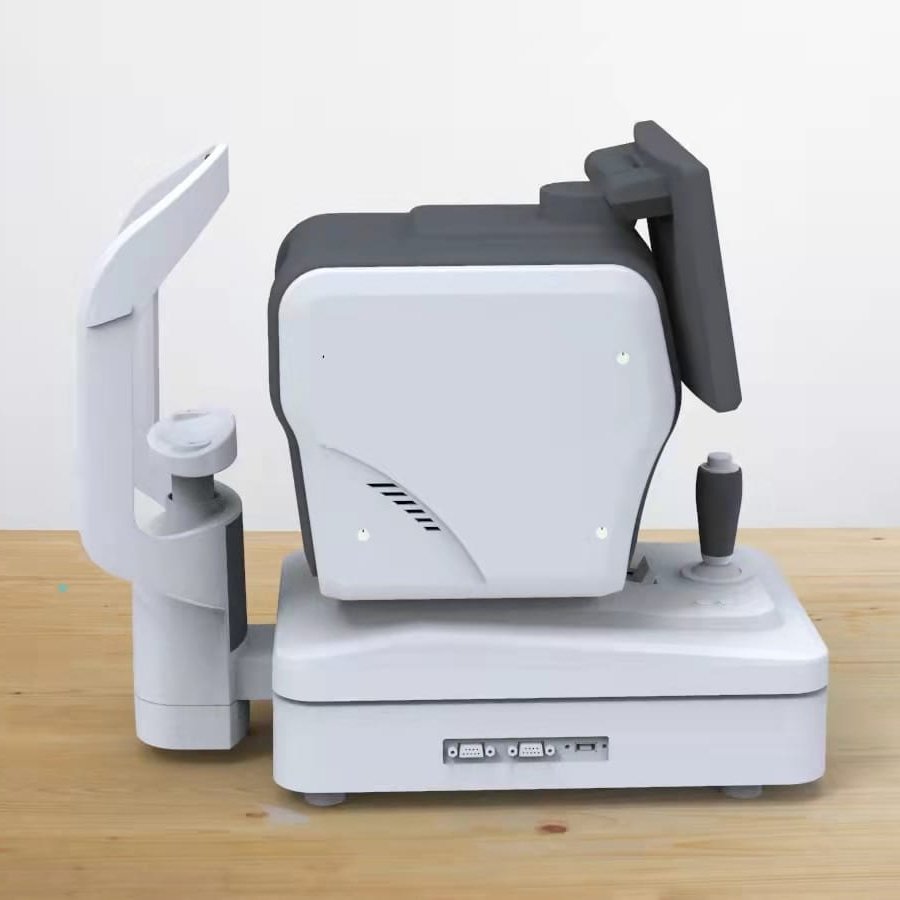

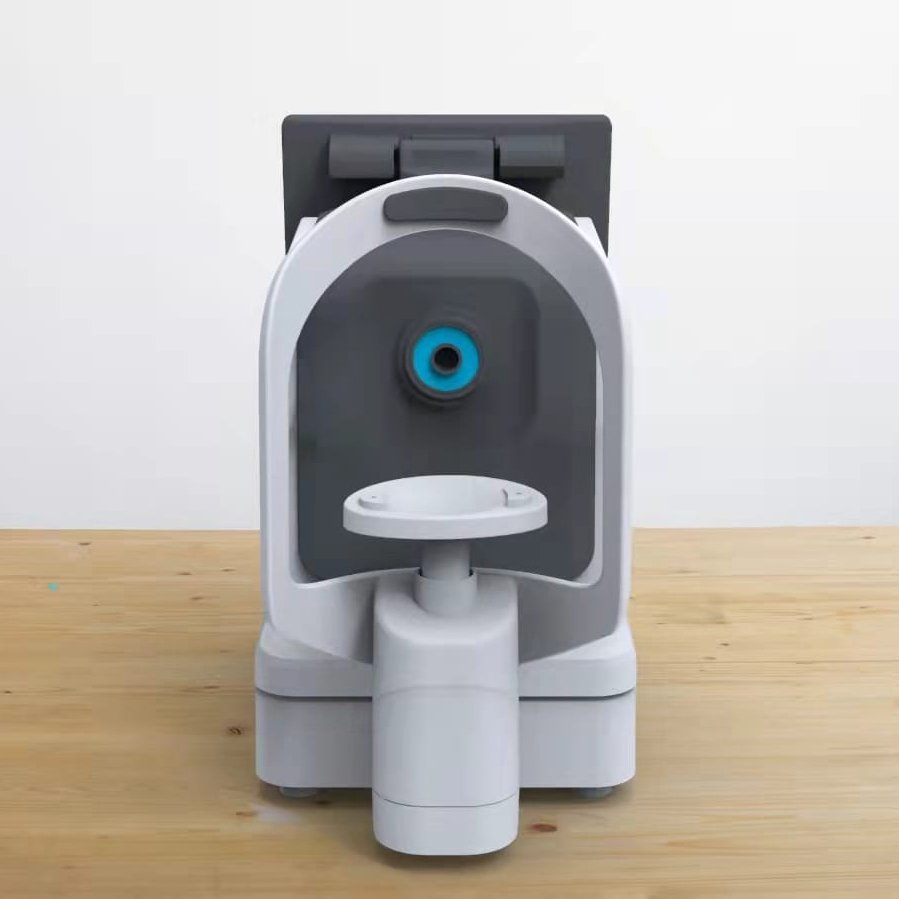

ARK-8500 Auto Refractometer Keratometer for Optometry Practice — Sphero-Cylindrical Refraction & Cornea Mapping
ARK-8500 Hartmann autoref-keratometer with high-def retina image, motorised auto focus and < 0.5 s measurement — the throughput-tier pre-test station for high-volume optometry chains.
- SKU
- OPS-ARK-8500
- Brand
- OpticsMED
- Warehouse
- Los Angeles, US · Rotterdam, NL
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
The OpticsMED ARK-8500 is the throughput-tier sibling of the ARK-7610 — same Hartmann imaging-and-processing platform, but with motorised horizontal/vertical/back-force focus that removes the manual joystick step. The combination of < 0.5 s measurement time and motorised alignment pushes daily pre-test capacity beyond what manual-focus units can achieve.
Key features
- Hartmann-type refractor
- High-definition clear retina image with new optics
- High-speed image acquisition and identification
- Flip 8" TFT touchscreen
- Motorised horizontal, vertical and back-force focus
- < 0.5 s average measurement time
- 57 mm thermal printer with auto cut
- Light energy < 30 μW (measurement safety)
- Wide-voltage power supply (100–250 V)
Specifications
| Sphere | -20 to +20 D (VD = 12 mm) |
|---|---|
| Cylinder | 0 to ±10 D |
| Axis | 1°–180° |
| PD | 10–86 mm |
| Min pupil | 2.0 mm |
| Curvature radius | 5.0–10.0 mm (0.01 mm) |
| Refractive power | 33–67 D |
| Net weight | 22 kg |
Built for
High-volume optometry chains, refractive-surgery pre-op clinics and multi-location practices standardising on motorised-focus pre-test workflow. The motorised alignment is the throughput differentiator over the ARK-7610.
