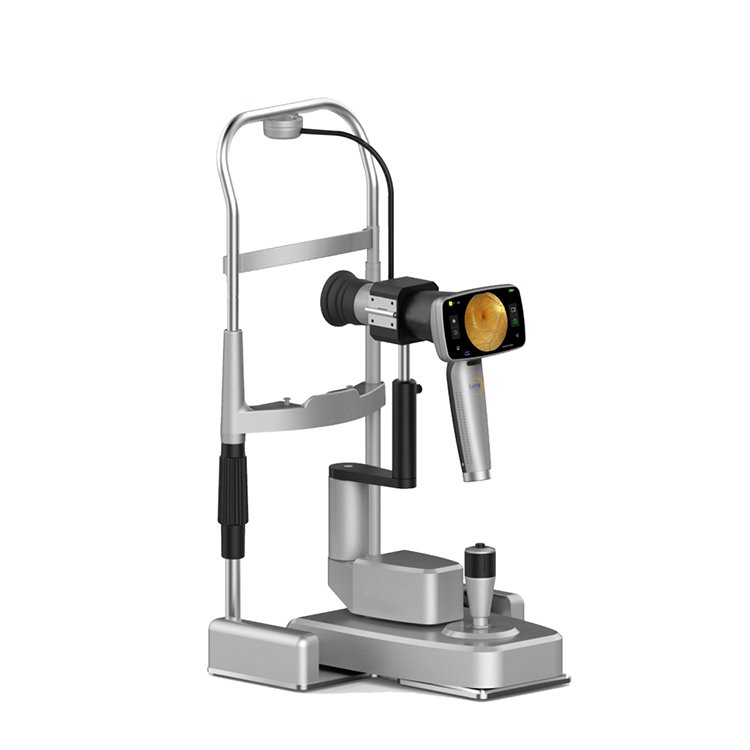

HFC-02 Handheld Fundus Camera for Diabetic Retinopathy Screening — Non-Mydriatic Imaging
HFC-02 handheld fundus camera with 45° field, auto focus, 4G/DICOM and 16 MP imaging — the connected smart fundus camera for telemedicine programmes.
- SKU
- OPS-HFC-02
- Brand
- OpticsMED
- Warehouse
- Los Angeles, US · Rotterdam, NL
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
The OpticsMED HFC-02 is the connected-smart variant of the handheld fundus camera line — 45° field of view, 2.5 mm minimum pupil, auto-focus with 8-target fixation, 16 MP image resolution, 4G networks, DICOM interface and built-in Android system. The all-in-one design eliminates the need for an external PC or mobile device.
Key features
- Non-mydriatic, minimum pupil 2.5 mm
- 45° field of view (wider than KJ25)
- Low-light LED flash with HD touchscreen
- Auto-focus AND 8-target fixation
- 16 MP image resolution
- 3.97" multi-touch screen (800 × 480)
- Integrated Android system
- 4G + WiFi + Bluetooth + USB connectivity
- 16 GB internal storage
- DICOM interface (PACS-ready)
- NFC card reader for patient ID
- Wireless printing support
- Cloud service system support
- Lithium battery: 6h continuous, 24h+ standby
- 560 g integrated weight
Specifications
| FOV | 45° |
|---|---|
| Min pupil | 2.5 mm |
| Image resolution | 16 MP |
| Storage | 16 GB internal |
| Battery | 3.7 V 3400 mAh Li |
| Net weight | 560 g |
Built for
Telemedicine programmes, smart-hospital diabetic retinopathy screening, GP referral networks with PACS integration and primary-care chains running cloud-based image archives. The integrated Android + 4G + DICOM stack is the connectivity differentiator over the simpler KJ25.
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
