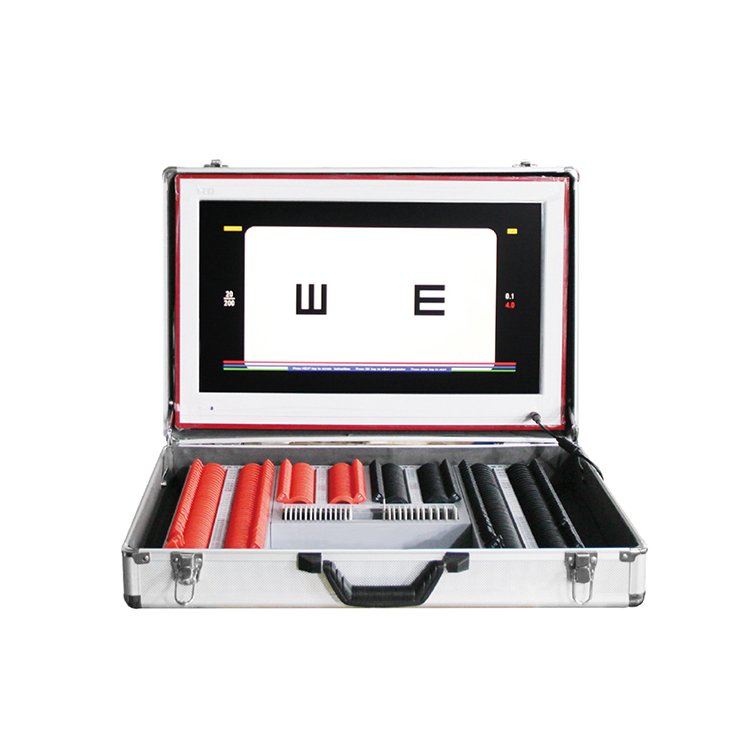

LCD-20 LCD Chart Monitor for Vision Acuity Testing — ETDRS, Snellen & Pediatric Charts
LCD-20 21.5" full-HD chart monitor (1680×1050) with 2000:1 contrast and < 2 W standby — the energy-efficient bigger-screen chart for modern optometry chains.
- SKU
- OPS-LCD-20
- Brand
- OpticsMED
- Warehouse
- Los Angeles, US · Rotterdam, NL
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
The OpticsMED LCD-20 is the energy-efficient 21.5" chart monitor — full-HD 1680 × 1050 resolution, 2000:1 contrast (twice the CM-1900), 300 cd/m² brightness, and crucially < 2 W standby power consumption. The standby efficiency adds up in chain operations running 20+ chart monitors across multiple stores.
Key features
- 21.5" TFT LCD
- 1680 × 1050 @ 60 Hz max resolution
- 0.282 mm pixel pitch
- 16:9 aspect ratio
- 530 × 335 mm visual size
- 170°/160° viewing angle
- 300 cd/m² brightness
- 2000:1 contrast
- < 2 W standby power
- 60 W standard operating power
- Working distance 1–6.5 m
- IR remote (range ≤ 6 m)
Specifications
| Size | 21.5" |
|---|---|
| Resolution | 1680 × 1050 @ 60 Hz |
| Standby power | < 2 W |
| Operating power | ~60 W |
| Dimensions | 578 × 380 × 75 mm |
| Net weight | 6.7 kg |
Built for
Modern multi-room optometry chains with sustainability or energy-efficiency targets in procurement criteria. The < 2 W standby is the differentiator over older 21.5" chart monitors that idle at 10+ W.
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

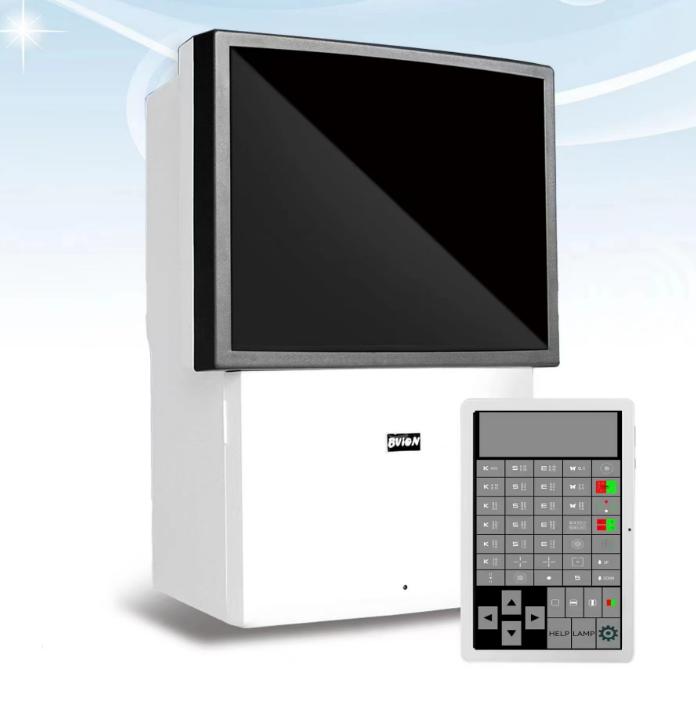

CP-8 LCD Chart Vision Monitor for Optometry — 30 Charts with ETDRS & Tablet Control
The CP-8 is an LCD chart vision monitor for digital visual acuity testing in optometry and ophthalmology examination rooms. It carries 30 charts including the ETDRS chart and supports fast chart-disk rotation through the included tablet controller. The bundled tablet provides wireless chart selection at the refraction position without the operator needing to walk back to the unit. It is suited for clinics moving from projection to LCD-based acuity testing.

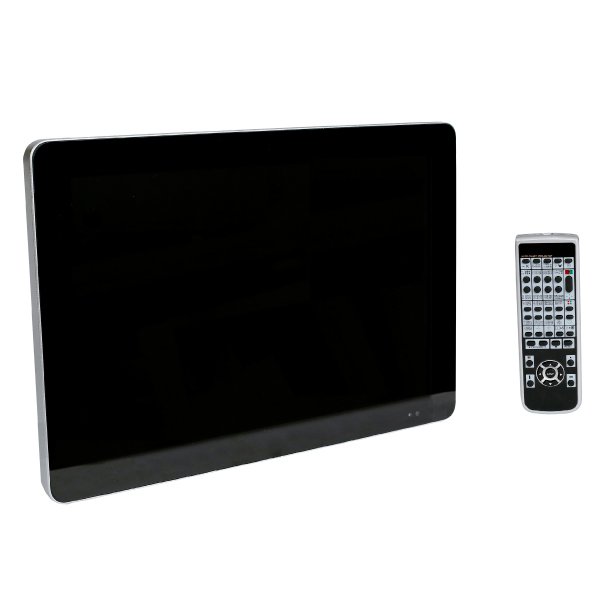

ACP-60-Plus LCD Chart Vision Monitor — Auto-Phoropter Compatible Visual Acuity Display
The ACP-60-Plus is a digital LCD chart vision monitor designed to work alongside an auto-phoropter on the refraction lane. The "Plus" version adds the connectivity needed to synchronise chart selection with the phoropter, so the optometrist drives both from a single console. Designed for eye clinics and optometry chairs that want a clean digital refraction workflow without a separate projector. Provides a flexible chart library for routine subjective refraction.

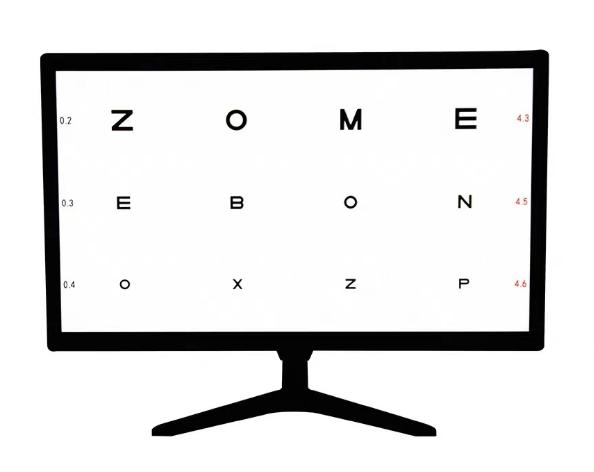

VC-4 LCD Vision Chart Monitor for Optometry Refraction Lanes — Multi-Optotype Display
The VC-4 is an LCD vision chart monitor that replaces a printed chart or projector in the optometry refraction lane. The display covers multiple optotype sets including E, C, letters, numbers, and children's charts so examiners can adapt to patient literacy and language without swapping physical charts. The LCD format gives consistent contrast for visual acuity testing across the working day. Suited to optometry practices, ophthalmology refraction rooms, and pediatric vision clinics.

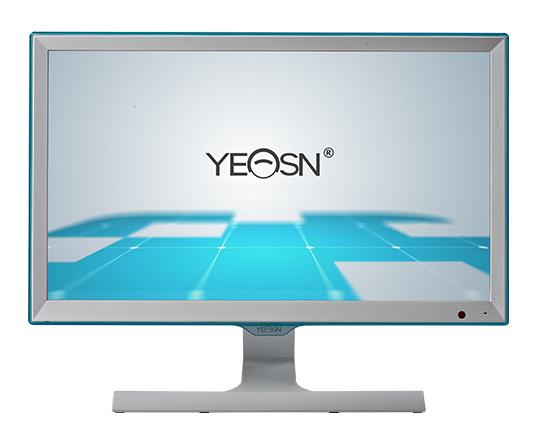

YPB-2100 LCD Vision Chart Monitor for Optometry Refraction Lanes — 23.8" PLS Display, Tablet Control
The YPB-2100 is a 23.8-inch PLS LCD vision chart monitor (1920×1080) designed to pair with the YPA-2100 auto phoropter for a tablet-controlled refraction lane. The display covers six optotype sets (E, C, Letter, Number, Kids, and others) and supports test distances from 1.5 to 7.3 metres in 0.1 m steps or 5 to 24 ft in 0.5 ft steps. A 178° viewing angle and 0.6-second response time keep the chart readable across the lane and responsive to control input. Suited to optometry practices and ophthalmology refraction rooms standardising on YEASN refraction equipment.
ACP-1000 LCD Chart Vision Monitor — Integrated Phoropter & Acuity Chart for Refraction Lanes
The ACP-1000 is an LCD chart vision monitor that combines a programmable acuity chart with phoropter integration in a single unit. The touch-screen display, programmable remote and library of standard charts and masks let the optometrist drive the whole refraction sequence from one console. Designed for optometry refraction lanes that want to consolidate the phoropter and acuity chart on one wall. Reduces lane footprint while keeping a clean operator workflow.
LCD-2100 LCD Chart Monitor for Vision Acuity Testing — ETDRS, Snellen & Pediatric Charts
LCD-2100 21.5" PLS-panel chart monitor (320 cd/m², 0.6 s response, 178° viewing) with wireless tablet control — the premium flagship for refractive consultancies.

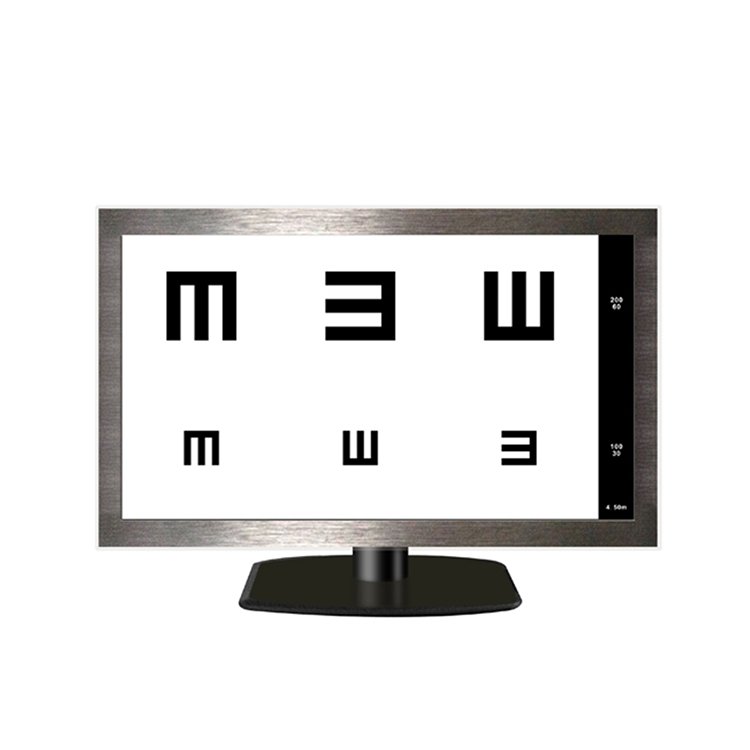

LCD-215 LCD Chart Monitor for Vision Acuity Testing — ETDRS, Snellen & Pediatric Charts
