APS-6000CER Visual Field Perimeter for Eye Clinics — Inspection / Measurement & Refraction Workstation

The OpticsMED APS-6000CER is the upgraded sibling of the APS-6000BER, with three workflow features that matter for jurisdictional vision testing: the Esterman test strategy for driving-licence visual-field assessment, automatic eye-tracking with blind-spot fixation monitoring, and a touchscreen interface that replaces keyboard/mouse for the technician.

Key features

• 300 mm radius hemispherical bowl (smaller than 6000BER, integrated unit)
• LED stimulus 580–650 nm, 2.5–1000 asb
• Yellow and red stimulus colours
• Adjustable stimulus duration (0.2–2 s) and inter-stimulus delay
• Strategies including Esterman driving-test mode
• Auto fixation monitoring (blind-spot or eye-tracking)
• Visual + audible warning on fixation errors
• Standard video camera for patient eye monitoring

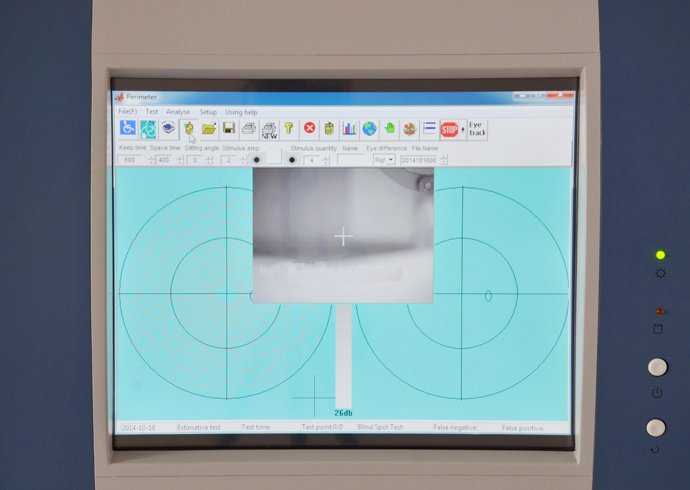

• Touchscreen interface with handwriting input
• 114 blind-spot points for fixation accuracy
• Chinrest travel 70 mm vertical, 90 mm horizontal
• 35 mm test-lens diameter

Specifications

Built for

Driver-licence vision testing centres, occupational-health clinics doing pilot/safety-critical assessments, and glaucoma practices that want the eye-tracking upgrade over manual fixation monitoring. The integrated touchscreen-and-camera setup also suits clinics where the technician runs the field test from beside the patient rather than at a separate PC.
