LG-918 Pattern Drilling Machine for Optical Lab — Lens Edging, Drilling & Verification

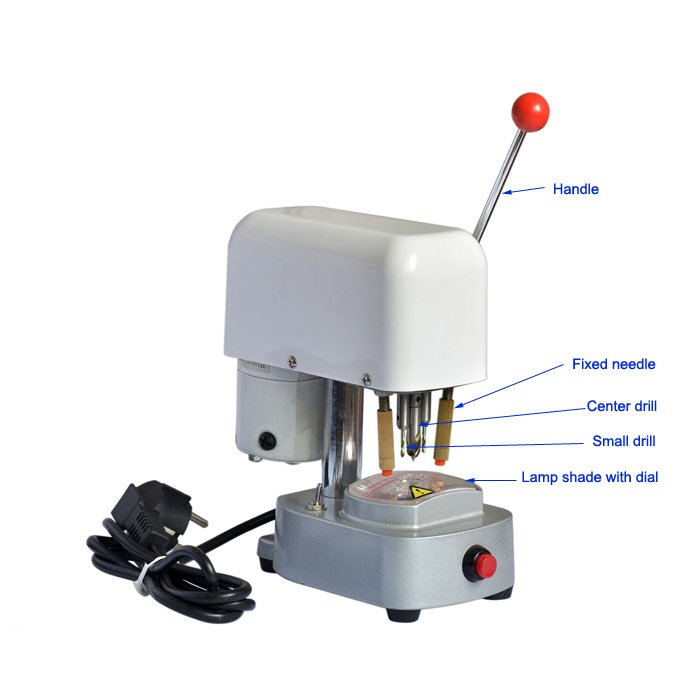

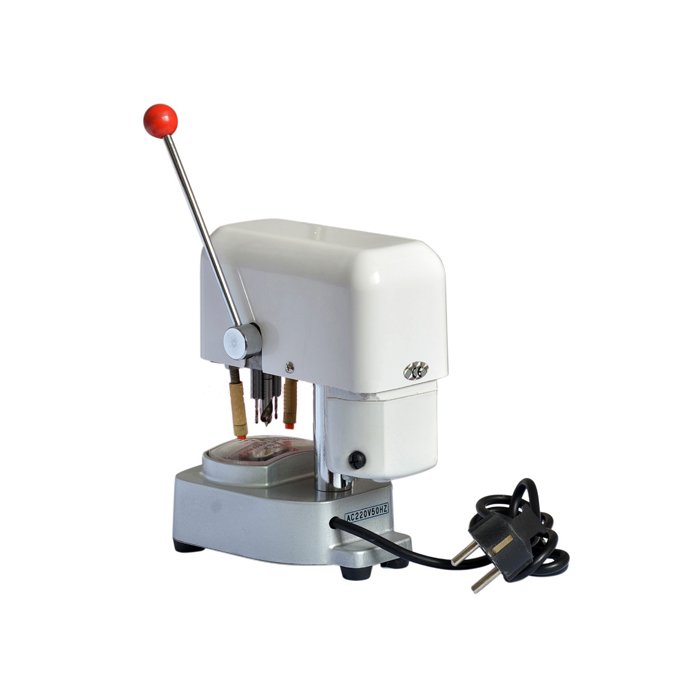

LG-918 three-hole pattern drilling machine — drills directly through the demo lens so rimless mounts can skip pattern-cutting entirely. Stainless-steel parts, AC motor, dial lamp.
- SKU
- OPS-LG-918
- Brand
- OpticsMED
- Warehouse
- Los Angeles, US · Rotterdam, NL
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
The OpticsMED LG-918 is the manual-positioning member of the LG-918 series and the one rimless labs reach for when the workflow already involves drawing PD and pupil-height marks on the demo lens. The technician sets the pattern, drops the demo lens onto the positioning bar, drills three holes in one pass, and moves straight to the edger — no separate pattern blank to cut and align.
Key features
- Drills three rimless mounting holes through the demo lens in a single setup
- Stainless-steel parts — resists wet-lab corrosion
- AC motor with manual positioning bar (precise, low-cost variant)
- Illuminated dial for clear pattern alignment
- Eliminates the separate pattern-cutting step
Specifications
| Voltage | 220 V / 50 Hz or 110 V / 60 Hz |
|---|---|
| Power | 90 W |
| Weight | 3 kg |

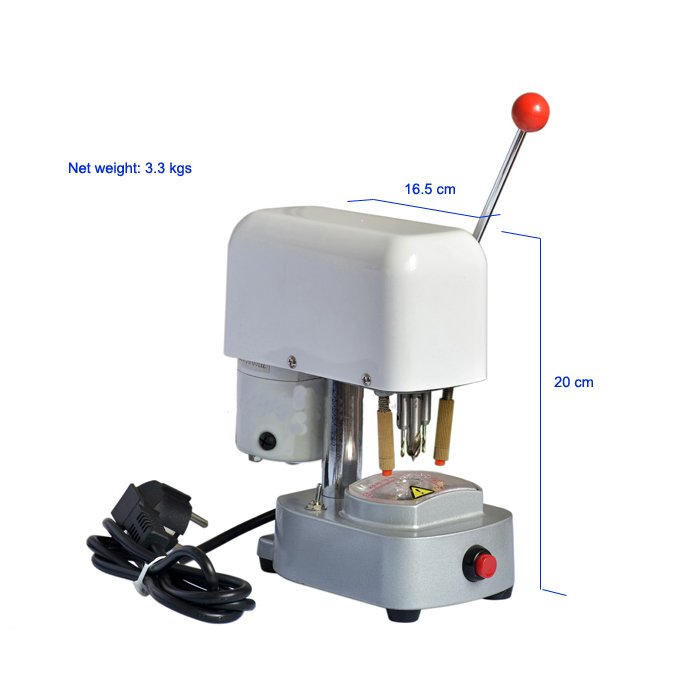

| Dimensions | 23 × 13 × 21 cm |
| Variants | 918 (manual, metal), 918A (auto, plastic), 918B (auto, plastic, lamp), 918C (DC, auto) |
Built for
Rimless-specialist labs and boutique optical retailers whose workflow centres on demo-lens-driven jobs. The manual-positioning variant suits labs where an experienced technician sets the holes by sight — typically smaller benches where speed matters less than precise control.
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
