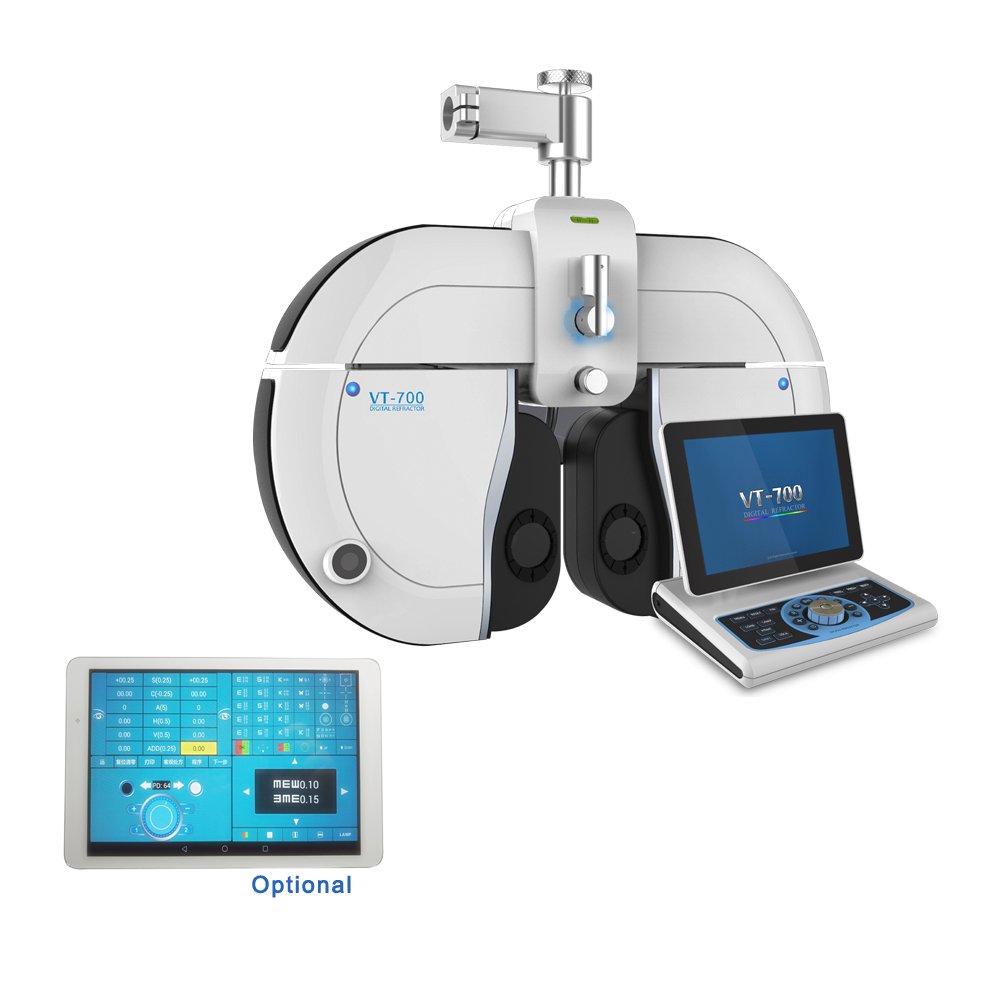

VT-700 Auto Phoroptor

VT-700 Auto Phoroptor Features: Ø The 9.7 inch touchable screen Ø Easy to update the program Ø The 180°rotating screen providing the direct communication with customers Ø Various near visual and facilitating icons built in Ø Abundant online functions Ø Elegant With exquisite workmanship Ø More accurate measurement Ø True Color touch screen Parameters: Sphere -29.00D~+26.75D (0.12D/0.25D/0.50D/1.00D//2.00/3.00D) Cylinder 0.00D~+8.75D (0.25D/0.5D/1D/2D/3D steps) Axis angle 0~180° (1°/5°/30°/45°steps) Pupillary Distance Distant range:45~75mm (0.5/1.00mm steps) Close range: 50~80mm 0.5/1mm steps Working Distance 35-70cm (step: 5cm) Rotary Prism 0~20 (0.1/0.2/0.5/1/2 steps) Cross Cylinder Lens Jackson cross cylinder 0.25D, Jackson cross cylinder 0.50D Plane Retinoscope +1.50D(67cm) +2.00D(50cm) Auxiliary Lens Pinhole Lens 1.0mm Maddox Right eye (horizon), left eye (vertical) Red and green lens RL(Right eye),GL(Left eye) Polaroid Right eye (135°,45°); Left eye (45°,135°) Prism Right 6 BU, Left 10BI Solid Suprachiasmatic cylinder Jackson Cross Cylinder ±0.50D Axis=90° Visual degree 32° Phoropter Size 362mm×299mm×83mm 3.5kg Keyboard Size 215mm×230mm×226mm 1.5kg Junction box 266mm×72mm×240mm 1.3kg Power Supply AC110V-240V 50/60HZ,90VA Net Weight 7.1kg
