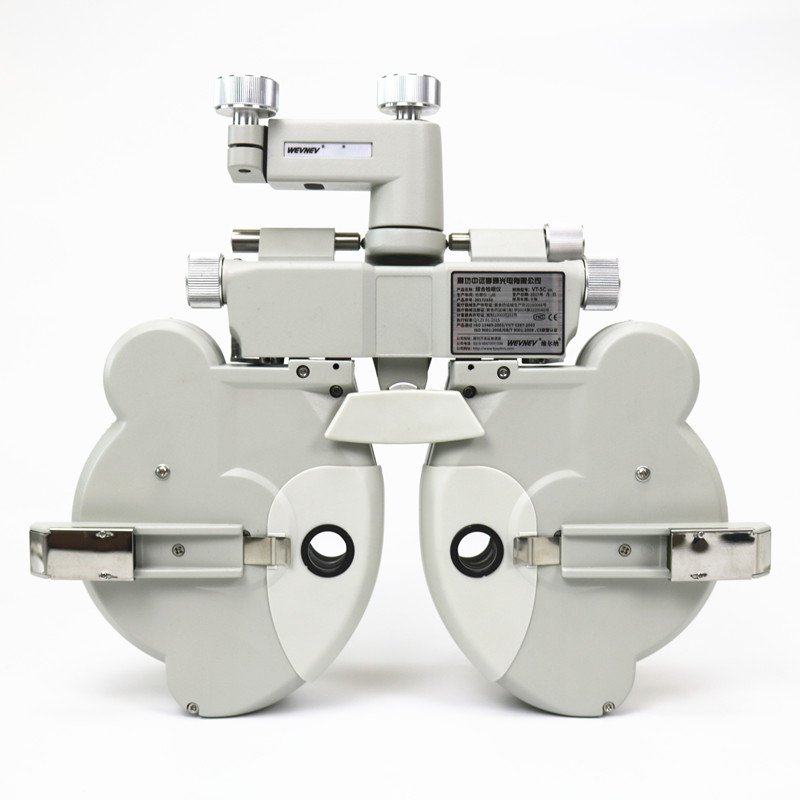

MP-5 Manual Phoroptor for Optometry Practice — Refraction, Lensmetry & Vision Testing
Manual phoroptor with auto-interlocking cross-cylinder and lens coordinates, +16.75 to -19 D sphere range — the ergonomic workhorse for refraction rooms that prefer feel over electronics.
- SKU
- OPS-MP-5
- Brand
- OpticsMED
- Warehouse
- Los Angeles, US · Rotterdam, NL
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
The MP-5 is a manual phoroptor designed around operator ergonomics. Auto-interlock between cross-cylinder lens and lens coordinates eliminates the most common mis-step in subjective refraction; large scale dials and a near-point reading rod make exam workflow direct and intuitive.
Key features
- Automatic interlock between cross-cylinder lens and the sphere/cylinder dials — one wheel, no inconsistencies.
- Large-format scale dials sized for fast reads under exam-room lighting.
- Ergonomic operator-side grip layout reduces wrist fatigue across a full clinic day.
- Convergence adjustment for near (380 mm @ PD 64 mm) and distance examinations.
- Forehead-rest fine adjustment 16 mm range to fit varied facial geometries.
- Includes near-point card, reading rod, dust cover, face mat and lens accessorial instrument.
Technical specifications
| Sphere range | +16.75 to -19.00 D (0.25 D step) |
|---|---|
| Cylinder range | 0.00 to -6.00 D (0.25 D step; to 8.00 D with -2.00 D auxiliary) |
| Cylinder axis | 0° to 180° (5° step) |
| Cross-cylinder lens | ±0.25 D |
| Rotary prisms | 0Δ to 20Δ (1Δ step) |
| PD adjustment | 48 to 75 mm (1 mm step) |
| Convergence | ∞, 380 mm (PD 64 mm) |
| Forehead rest | 16 mm range |
| Dimensions | 320 × 295 × 97 mm |
| Net weight | 4.5 kg |
Built for
Optometry rooms, eye hospitals and refraction labs that still prefer the directness of a manual phoroptor — or run alongside auto refractors and want a manual second opinion station.
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
